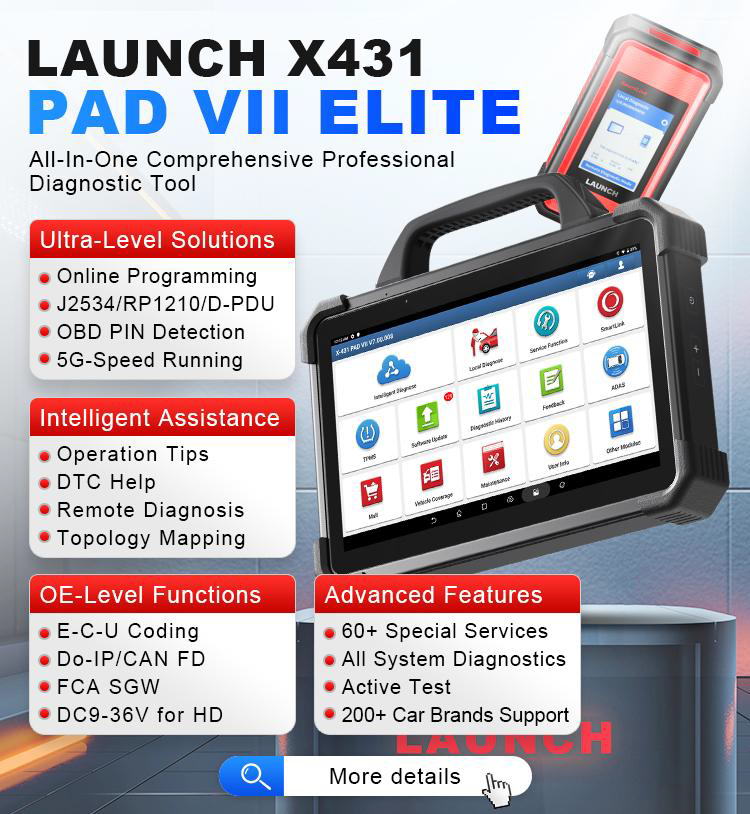

LAUNCH X431 PAD VII Elite, 2025

Description

LAUNCH X431 PAD VII Elite, 2025 New Top J2534
Reprogramming Tool, Intelligent Topology Map Bi-Directional
Diagnostic Scanner, ECU Coding, 2 Years Free Update, 60+
Services

Advantages of LAUNCH X431 PAD VII ELITE, Upgrade Your Repair Work
2025-released ultimate scan tool LAUNCH X431 PAD VII ELITE is an unexpected high-end
diagnostic tool from LAUNCH, comes with the ADAS calibration function, 60+ service
functions, TPMS service, and 8 extended modules functions. New Smartlink C VCI powers
technicians a new diagnostic level without the limitation of diagnostic functions, tools, and
vehicle types.
LAUNCH X431 PAD VII ELITE (PAD 7) Highlights:
The Advantages of LAUNCH X431 Tools about the Dealership-level ECU Programming &
Coding Functions: Backup/Recover ECU Data; Manual & Automatic Options; Aftermarket
Installation; Modification/Changeover.
OEM Topology Mapping

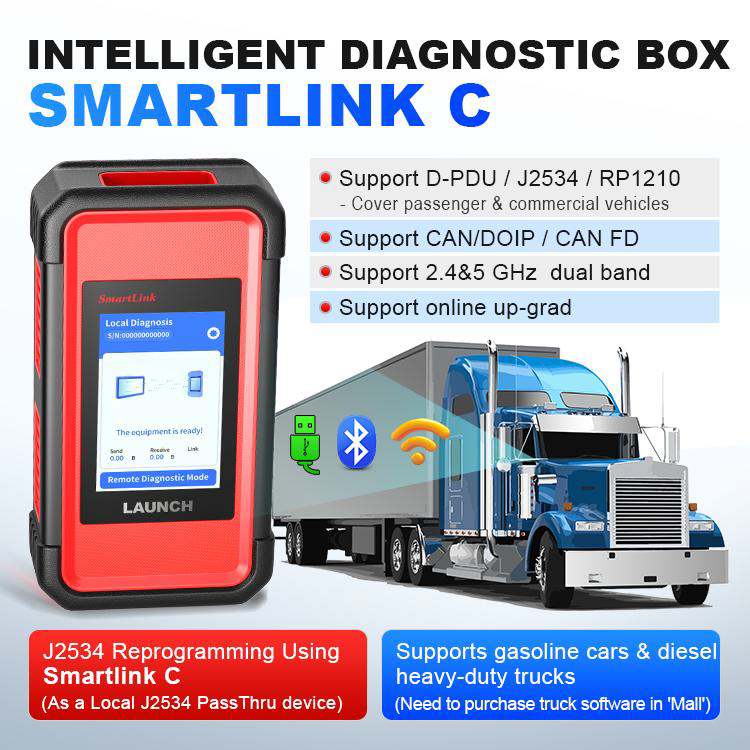

Supports gasoline cars and diesel heavy-duty trucks with Smarlink C (need to purchase truck
software in ‘Mall’)
Support automotive communication protocols CAN/CANFD/DoIP and automotive
communication standards J2534/D-PDU/RP1210
Support some car makes coverage till 2025, incl. BMW, Benz, VW, Audi, GM, Ford, Chrysler,
Toyota, Nissan, Honda, Land rover etc. Full system vehicle coverage for U.S., Asian and
European markets over 110 brands, which is continually updated

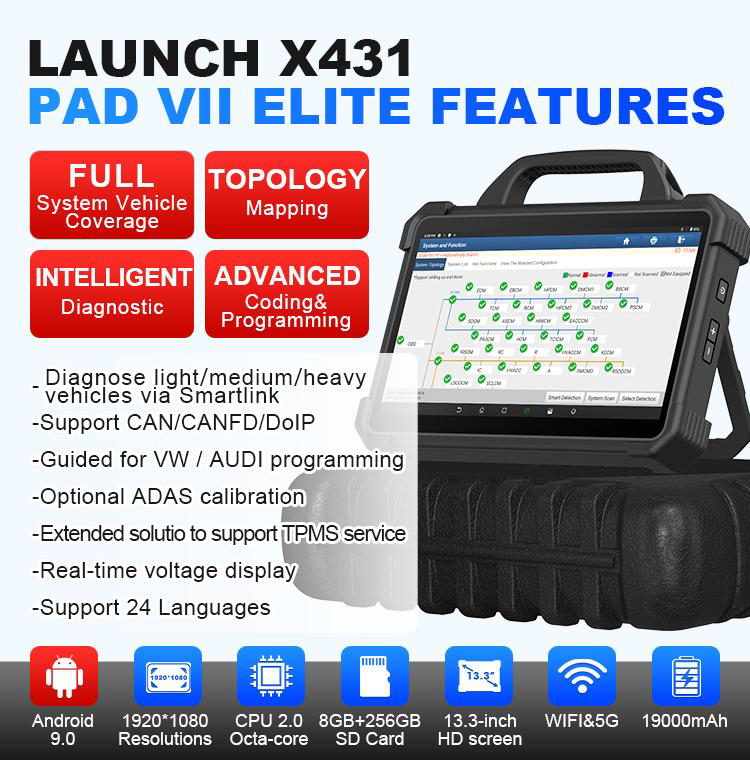

All Impressive Hardware, Realize Your Full Potential:
 Its fine-turned Android 9.0 KitKat allows fast boot-up within seconds and multitasking.
 Extraordinarily 8-core Cortex-A53 Processor (2GHz) boosts your speed of
programming and diagnostics.
 The thin and light tablet-style design, with a capacitive touchscreen that is sensitive to
your every gesture.
 Super-size & ultra-crisp 13.3” (1920*1080) touchscreen offers visually stunning view;
gorilla glass provides exceptional damage resistance to the scratches.
 The internal 8G+256G onboard memory is a great plus for material storage.
 An 18,720Ah rechargeable lithium-polymer battery enables up to 20 hours of
continuous operation.
 And thanks to the wireless scanning and Wi-Fi connection, you can stay connected
and work from anywhere in the service bay.
 Real IP65 rated;
ECU Programming & Coding
 LAUNCH X431 PADVII provides a simple mechanism to back up all your ECU
programming & coding data.
 It allows you to make a copy of your current Coding, Adaptations, and other info (such
as Advanced ID and Live Data) of a selected control module, and save them as a file into
your scan tool as a backup.
 To restore coding or programming values, just select the backup file you need and
you’ll effortlessly get reverted back to the old settings/coding in a control module.
 This function is compatible with Ben.z all series, and B.M.W F/G/I chassis.
 **NOT universally compatible. Function menus may depend on vehicle’s make,
model and year.
Topology Module Mapping + 60+ Advanced Maintenance Services + 35+ Reset &
Relearn Services
Topology Module Mapping
 It is the first application of topology module mapping in the field of automotive
diagnostics. In terms of visual aspect, LAUNCH X431 PAD VII ELITE shows different health
statuses in different colors and shows the structure of communication between modules. In
the aspect of ease of use, it enables you to press the system module to access the system
and display the relevant DTCs.
60+ Advanced Maintenance Services:
 Guided Functions: Skip the Security Access Code & Channel Number to perform
matching, calibration, and basic settings for VW / Audi / Skoda / Seat; **NO extra costs.
 Component Matching: Rematch ECU (control module unit) after the replacement for
VW / Audi / Skoda / Seat / BMW / Chrysler / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan
/ Hyundai / Kia / Subaru etc.
 Online Parameterization: Reset all adaptive data in target systems after ECU
module replacement; compatible with VW / Audi / Skoda / Seat.
 Online Calibration: For some car systems’ calibration; compatible with VW / Audi /
Skoda / Seat.
 Online Account Login Service: Access to the login codes for coding, matching, and
basic settings of all available systems.
 Programmable Module Installation (PMI): Ensure the correct software/calibration
and configuration data are loaded onto the new module after replacement for Ford / Mazda.
 Power Balance: Identify the less productive cylinder for Chrysler / GM / Ford.
 Personalization: Compatible with BMW / Porsche / Toyota / Subaru.
 And many more are coming soon.
Cover the majority of makes and models worldwide up to 2025 for Oil Reset, Injector Coding,
Brake Reset, SAS Reset, BMS Service, ABS Bleeding, Throttle Matching, TPMS Reset, Gear
Learning, AFS Reset, Gearbox, Sunroof, SUS Reset, Windows Calibration, Seats Calibration,
Language Change, A/F Reset, Coolant Bleed, Transport Mode, Adblue Reset, NOx Sensor
Reset NOx, Stop/Start Reset, Headlamp Fitting, Seat Matching, Door & Window Initialization
Study, Air Suspension Matching, Multimedia Video Reset, Cluster Reset, Tire Change, and
more.
FCA Secure Gateway
LAUNCH X431 PAD VII ELITE automotive diagnostic scanner provides a trustworthy authority
for technicians, car dealers, automotive engineers, and service shops to undo the SGW and
perform all the necessary repair procedures.
Active Test / Bidirectional Control
LAUNCH X431 PAD VII ELITE performs the active test, which bypasses the onboard control
systems to send commands to modules to perform specific tests. By monitoring their
responses, you can precisely locate the faults, and shorten the troubleshooting time without
tearing the vehicle apart. It can:
 Rolling up / down a window;
 Turning the fuel pump on and off;
 Cycling the a/c clutch on and off;

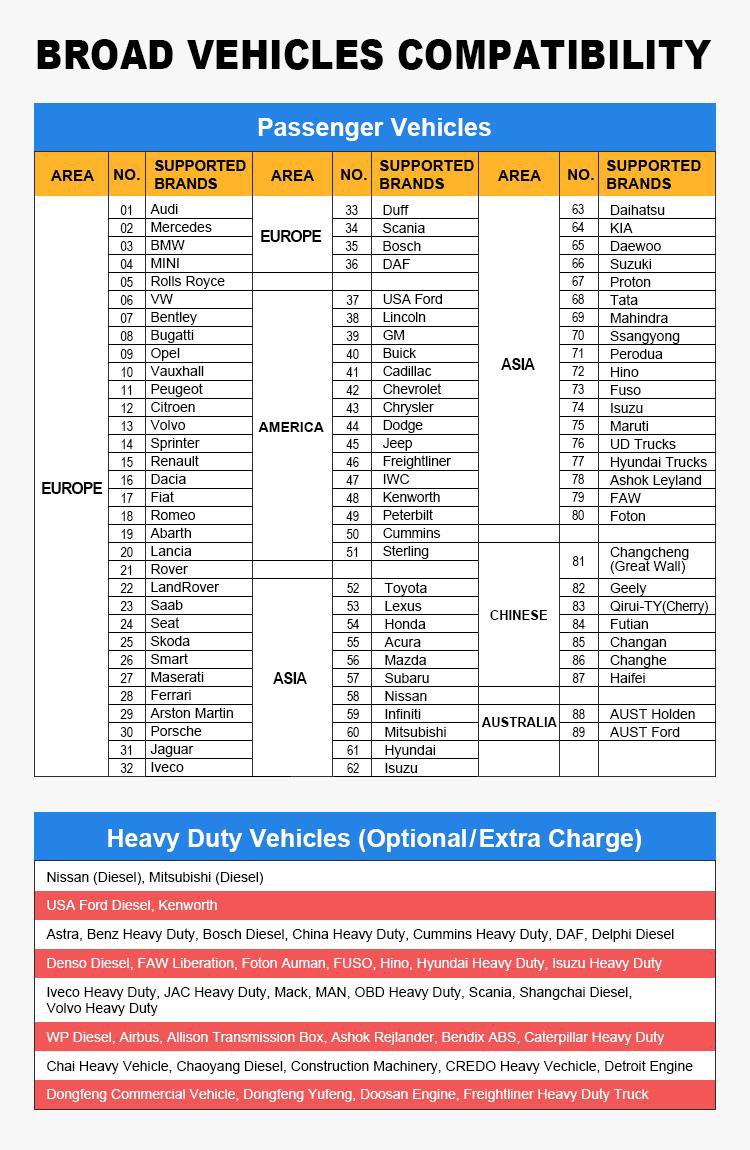

Wide Vehicle Coverage
The newly upgraded LAUNCH X431 PAD VII ELITE has also been improved in terms of
vehicle coverage. The vehicle coverage upgrade is not limited to a particular country but refers
to globally broad compatibility for commercial and passenger vehicles. (If you need to
diagnose commercial vehicles/trucks, you need to purchase HD software separately which
comes with truck adapter accessories, and then activate the heavy-duty module on the pad vii
elite tablet.)

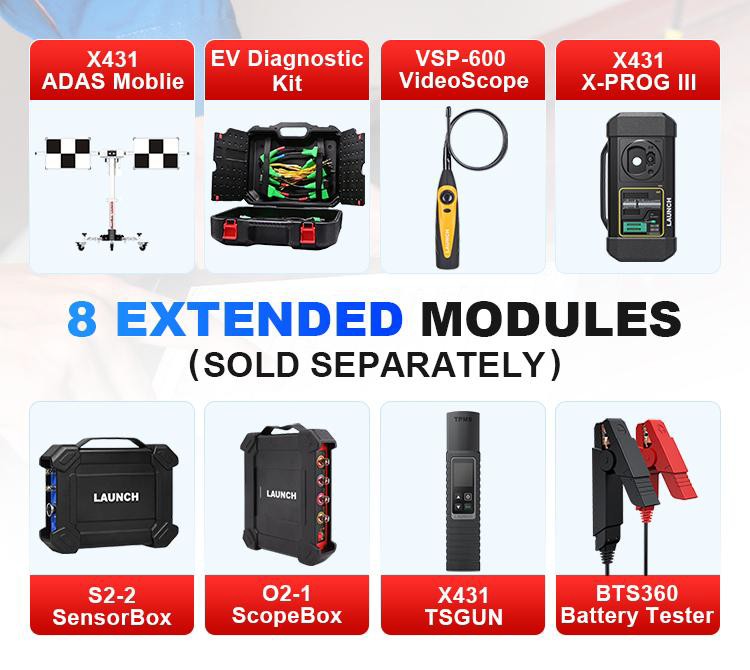

Supports Extended Function Modules:
 VSP-600 VideoScope: for up-close visual inspections in confined areas.
 S2-2 SensorBox: diagnose and simulate vehicle sensor faults quickly.
 O2-1 ScopeBox, Oscilloscope: quickly acquire the circuit signal, and slowly display
the waveform for easier analysis.
 X-431 Wi-Fi Printer: print out diagnostic data & reports.
 X-431 TSGUN: activate all sensors, relearn & program LAUNCH sensors.
 BTS360 Bluetooth Battery Tester: get a thorough test of the vehicle battery.
**Need extra costs to buy these function modules.
Supported Languages:
English, Italian, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkey,
Dutch, Greek,Hungarian, Arabic, Denish, Korean, Farsi, Romanian, Serbian, Finish, Swedish,
Czech.
