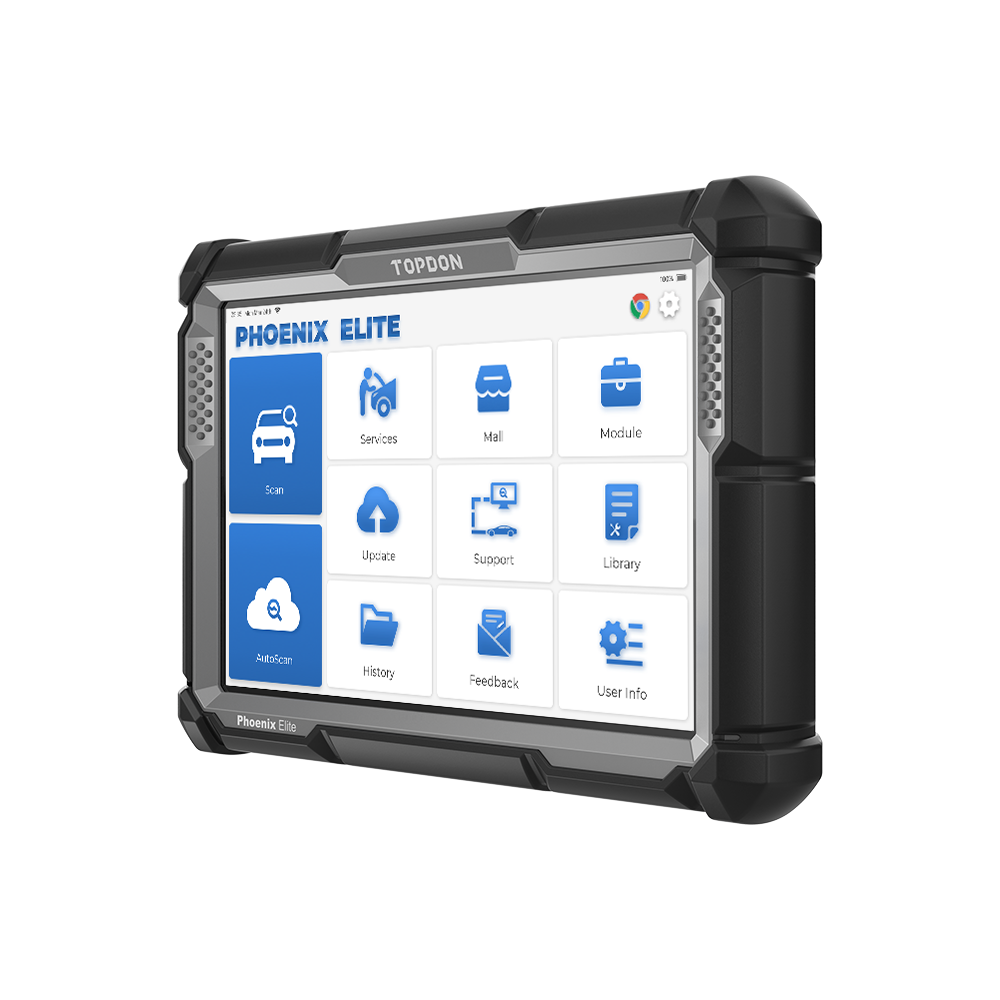

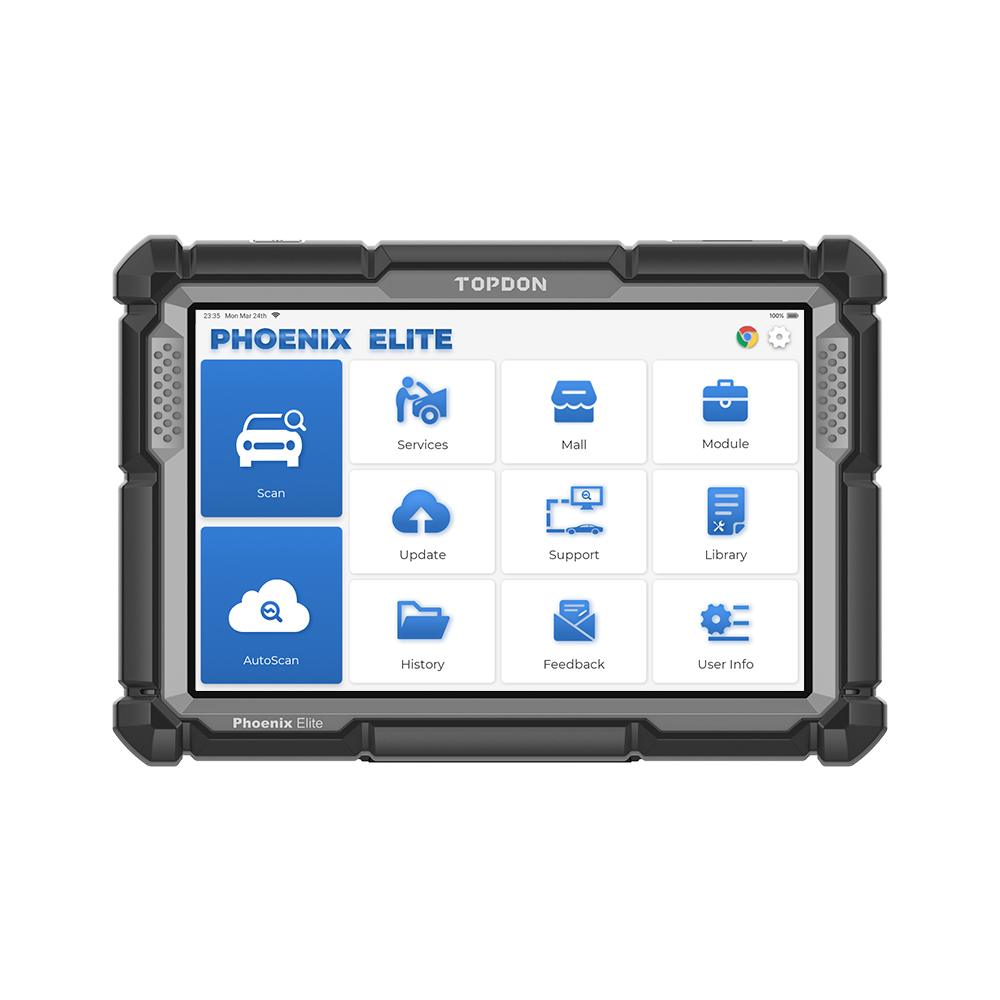

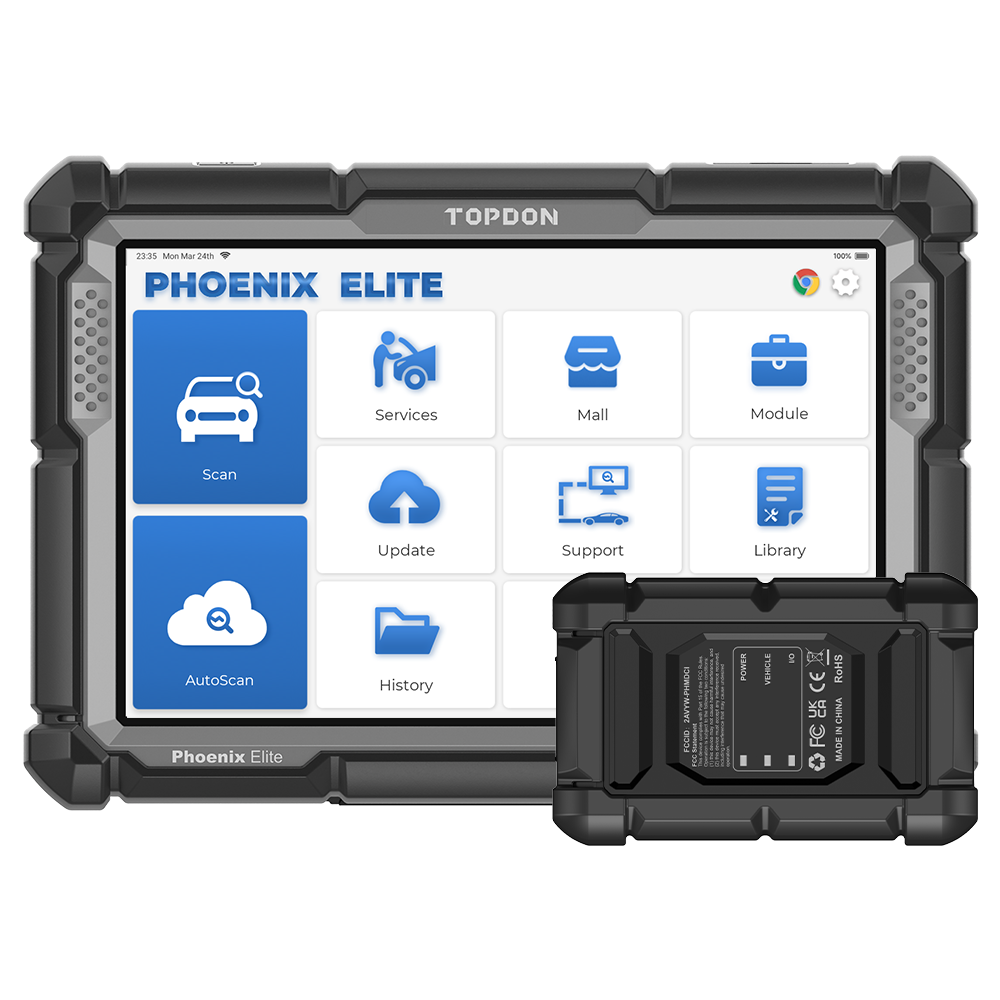

TOPDON | Phoenix Elite

Description

CONNECT TO THE NEWEST VEHICLES

Vehicle communication is enhanced with most of the latest communication protocols. The Phoenix Elite comes equipped with wireless VCI and CAN-FD capabilities.

ALL DATA ON ONE SCREEN

Topology mapping displays related vehicle systems and CAN network.
Diagnose communication issues instantly.
Color-coded mapping of each module’s communication status.
Offer active tests, special functions, coding, initialization, and memory resets.

GUIDED FUNCTIONS FOR VAG VEHICLES

Step-by-step guided diagnostics procedures based on code for VW and Audi Vehicles.

VEHICLE AUTO VIN AND AUTODETECT

The Phoenix Elite automatically captures the vehicle’s VIN number and finds all relevant information about the vehicle. Use this feature to save time and prevent mistakes.

PRE-SCAN AND POST-SCAN REPORTING

The Pre-Scan and Post-Scan features allow the technician the ability to record the codes prior to repair. This will enable copies to be given to insurance companies and customers for repair approval.
When the repairs are completed, the Post-Scan report can be recorded showing all codes are clear, showing off the vehicle’s clean bill of health.

Specifications

• Display: LCD 10.1” touchscreen, 1280*800
• CPU: 4-Core Processor, 2.0 GHz, Android 10.0
• RAM: 4G
• ROM 64G
• Battery: 12000 mAh / 3.8V
• Operating Voltage: 9~18V
• Storage Temperature: -20℃~60℃（-4℉~140℉）
• Working Temperature: 0℃~50℃（32℉~122℉）
• Dimension: 278*191*48 mm（10.94*7.52*1.89″）
• Package size: 468*320*143 mm(18.43*12.60*5.63″)
• Multilingual Support: 24 Languages
  English, German, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Dutch, Hungarian, Chinese (Traditional), Korean, Finnish, Greek, Slovak, Romanian, Arabic, Croatian, Slovenian, Czech, Danish, Norwegian

Packing List

• 1* Phoenix Elite

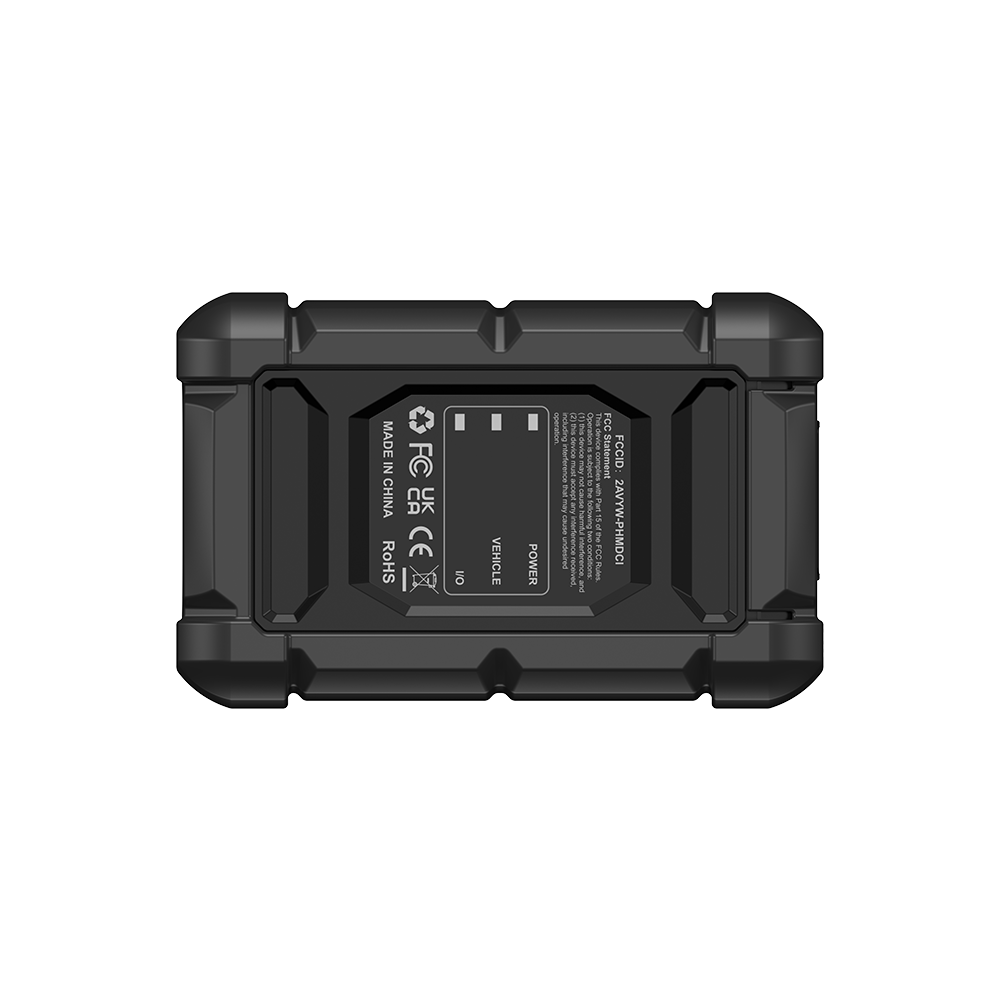

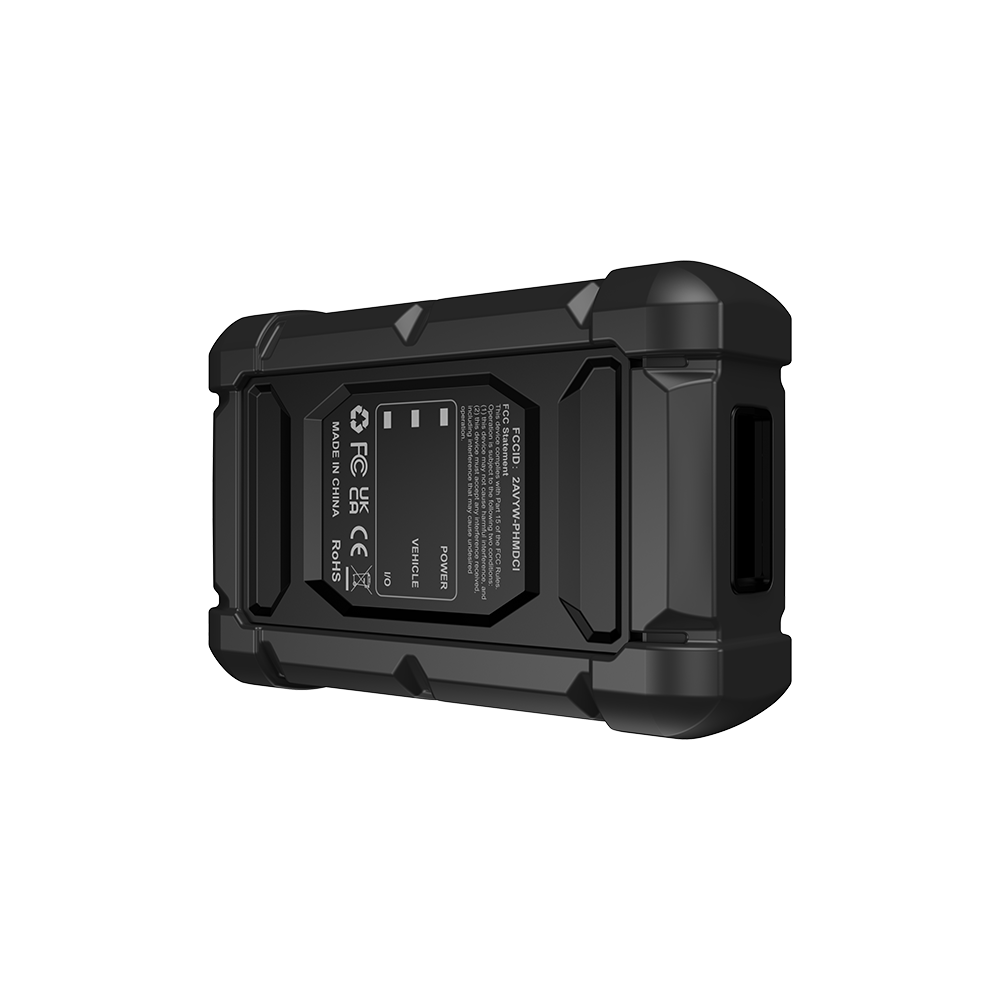

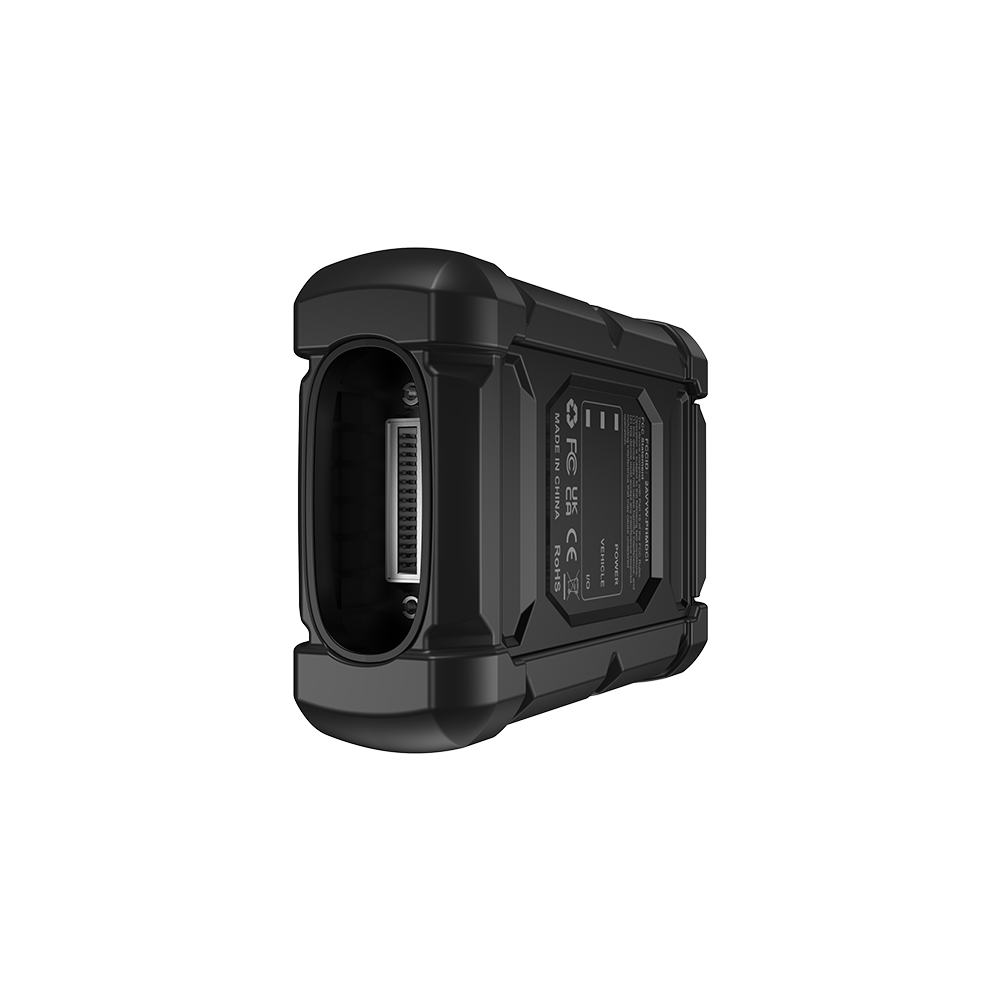

• 1* Phoenix MDCI (VCI Dongle)
• 1* OBDI Adapter BOX Transfer Line
• 1* OBDII Extension Cable
• 1* Cigarette Lighter Cable
• 1* Type-C to USB Cable
• 1* Battery Clamps/Cable Set
• 1* Power Adaptor
• 1* User Manual
• 1* Password Envelope
• 10* Non-16pin Adaptor Cable Kit
• 4* Fuse (φ5*20mm)
• 2* Fuse (φ6*30mm)
• 1* BMW F-Chassis Programming Cable

Warranty and Updates

Two Years Warranty.
Two Years of Free Software Updates.
